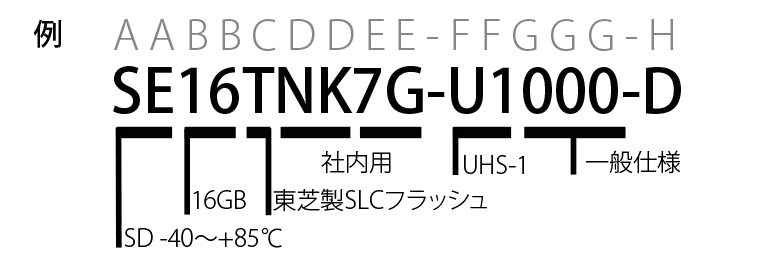

部品番号 【15桁】: AABBCDDEE – FFGGG – H



例

    • AF = PCMCIA (0 to 70°C)
    • AA = PCMCIA (-10 to 85°C)
    • AE = PCMCIA (-40 to 85°C)
    • BA = CFast (MLC 0 to 70°C)
    • BB = CFast (SLC 0 to 70°C)
    • BE = CFast (-40 to 85°C)
    • CF = CF (0 to 70°C)
    • CE = CF (-40 to 85°C)
    • DP = PATA Drive (0 to 70°C)
    • PE = PATA Drive (-40 to 85°C)
    • DS = SATA Drive (0 to 70°C)
    • DA = SATA Drive (-10 to 85°C)
    • DE = SATA Drive (-40 to 85°C)
    • MD = mSATA Drive (0 to 70°C)
    • MA = mSATA Drive (-10 to 85°C)
    • ME = mSATA Drive (-40 to 85°C)
    • MK = SlimSATA Drive (0 to 70°C)
    • ML = SlimSATA Drive (-40 to 85°C)
    • MN = mini mSATA (-40 to 85°C)
    • MQ = mini mSATA (0 to 70°C)
    • MU = USB Module (0 to 70°C)
    • MV = USB Module (-10 to 85°C)
    • MY = USB Module (-40 to 85°C)
    • SD = Secure Digital (0 to 70°C)
    • SE = Secure Digital (-40 to 85°C)
    • S3 = microSD (-40 to 85°C)
    • S4 = microSD (-25 to 85°C)
    • US = USB Drive (0 to 70°C)
    • UY = USB Drive (-40 to 85°C)



    • 06 = 64MB
    • 12 = 128MB
    • 25 = 256MB
    • 51 = 512MB
    • 0G = 1GB
    • 02 = 2GB
    • 04 = 4GB
    • 08 = 8GB
    • 16 = 16GB
    • 32 = 32GB
    • 64 = 64GB
    • 1H = 128GB
    • 2H = 256GB
    • 5H = 512GB



    • SLC

    • H = Hynix
    • K = Intel
    • M = Micron
    • S = Samsung
    • T = Toshiba
      MLC

    • A = Toshiba
    • L = Intel
    • N = Micron
    • U = Samsung
    • Y = Hynix



    • Delkin Internal



    • Delkin Internal



    • 01 = Uncased Flash Card
    • 05 = Black Plastic USB Case
    • 17 = 1.8″ SSD
    • 25 = 2.5″ SSD
    • C1 = SD1.1 (SDSC)
    • C4 = SDHC Class 4
    • C6 = SDHC Class 6
    • CX = SDHC Class 10
    • F1 = CF Fixed Disk/DMA Off/UDMA Off
    • F2 = CF Fixed Disk/DMA On/UDMA Off
    • FD = CF Fixed Disk/DMA On/UDMA On
    • XX = CF Removable/DMA On/UDMA On
    • X1 = CF Removable/DMA Off/UDMA Off
    • X2 = CF Removable/DMA On/UDMA Off
    • X3 = CF Removable/DMA On/UDMA Restricted to UDMA2
    • R1 = USB Samtec Connector
      (HLE-105-02-G-DV)
    • R2 = USB Samtec Connector
      (MMS-105-02-L-DV)
    • R3 = USB Samtec Connector
      (CLT-105-02-G-D)
    • R3 = USB Right Angle Sullins
      (NPPC052KFMS-RC)
    • ST = USB Straight Samtec Conn
      (MMS-105-02-L-DH)
    • U1= UHS-1
    • WP= Write Protected Drive
    • XN= No special form factor * other selections available by product type



    • 000 = No special instructions
    • 050 = Tekta™ Conformal Coating
    • Codes Assigned as Needed for Specific Customer Requirements
